Product Details

ENERGY EFFICIENT CEILING FAN

Features:     Super energy efficient BLDC Motor - Highest service value (Air delivery/watt) - Runs 3 times longer on inverter resulting longer battery run time - No humming Noise - No heating of Fan even after long hours of runtime resulting in extra-long life - Consistent performance even at low voltage and power fluctuations - Easy speed control using smart remote - TIME feature to auto switch off - Sleep mode that reduces the speed after set hours and save energy - ISO 6001:2008 & ISO 14001:2004 CERTIFIED - Compliant with requirements of IS 374:1979

Technical Specifications

  • Span (mm/inch)
    :
    1200/48- 1400/56
  • Service value/Air Delivery
    :
    >7
  • Input Voltage (V)
    :
    140-285
  • Power consumption (W)
    :
    28
  • Frequency (Hz)
    :
    48-52
  • Air Delivery (CMM)
    :
    220
  • Power factor
    :
    0.95
  • No.of Blades
    :
    3
  • Warranty
    :
    3 Years

Comparison

Comparison Energy Efficient Fan Ordinary Ceiling Fan
Watt 28 Watt >75 Watt
Energy use per year 134.4 units 360 units
Electricity cost per year Rs-806 Rs- 2160
Assumption Usage of 16 hours a day, 300 days in a year

Features

Super energy efficient
BLDC Motor

Highest service value
(Air Delivery/Watt)

Runs 3 times longer on inverter

No humming noise

No heating of fan even after long hours of runtime resulting in extra long life

Consistent performance even at low voltage and power fluctuation

Easy speed control using smart remote

Timer feature to auto switch-off the fan

Sleep mode that reduces the speed after set hours and saves energy

Grid Tie Inverter

Converts direct current (DC) from PV panels to alternating current (AC) with an ability to synchronise with the grid.

Designed to disconnect from the grid if the utility grid shutdown.

Features
  • Transformer less inverter
  • Inbuilt Dual MPPT Charge controller
  • Wide MPPT voltage range
  • IP 65 encloser
  • Modbus Comms - For efficient remote monitoring
  • String inverter - Stackable up to MW level.
Benefits
  • No transformer loss so Efficiency is >97%
  • Complete utilisation of PV arrays even in partial shading
  • Extends the day thus harnessing maximum power from sun
  • Completely dust and water proof ideal for outside installation
Range
  • Single phase- 1.5 Kw, 2 Kw, 3 KW, 3.6 Kw, 4 Kw, & 5 Kw
  • Three Phase- 6 Kw, 10 Kw, 15 Kw, 20 Kw, 25 Kw, 30 Kw

Home UPS

Hybrid UPS available in the range of 500VA, 850VA & 1500 VA with inbuilt charge controllers

with wide choice of PV modules from 500Wp to 1100 Wp, with unique feature of ISOT it saves 1.5 to 3 units per day.

Features
  • Intelligent logic control
    (Simultaneous charging solar mains with priority to solar)
  • Pure sin wave inverter with 85% efficiency
  • iSOT-Intelligent solar optimization technique
  • Inbuilt charge controller with 98% efficiency
  • Intelligent battery monitoring
  • Battery charging commences at 110 Volts mains voltage
  • Equipped with battery type selection
  • O/P for both AC as well as DC
Benefits
  • Very safe for sensitive products like TV, PC, Laptop,and Refrigerator etc.
  • 25 to 30% saving on Electricity bill & reduces charging time
  • Power saving of 1.5 units to 3 units per day
  • Fast charging of batteries from solar
  • Protecting battery from overcharging and hence longer life
  • Charges battery during low voltage
  • Flexibility to use with all types of batteries
  • Run both DC and AC appliances

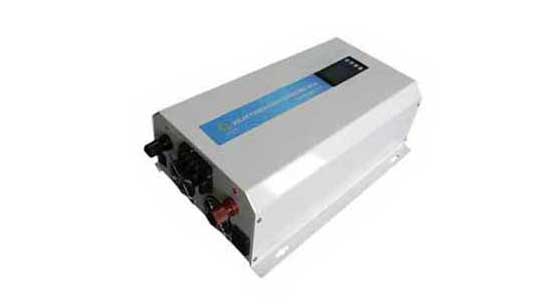

Power Conditioning Unit

Comes with inbuilt MPPT charge controller which is specially designed for applications. These 1-phase & 3 phase PCUs are having high conversion features.

The DC power generated from PV array is used to charge connected battery bank and also used to cater load through these PCUs.

These PCUs being By-directional have a special feature to charge batteries through grid and solar with priority to energy.

Features
  • MPPT based PCU
  • Inbuilt O/P isolation transformer
  • By- directional PCU
  • Source priority selection
  • 32 bit DSP Controller
  • MOSFET/IGBT switching element
  • MCB at battery & O/P
  • Compliance to IEC standards
  • Range- Single phase 1Kw- 10Kw
  • Three Phase- 10Kw to 100Kw
Benefits
  • Maximum utilisation of solar power
  • Protection from internal surges and noise
  • Features for battery charging through grid also
  • Choose source priority between solar, battery & Grid
  • Ability to handle multiple algorithm efficiently
  • High current handling capacity, preventing thermal loss
  • Switch off the electrical circuit during abnormal condition
  • Safe reliable and good quality

CHARGE CONTROLLER- PWM/MPPT

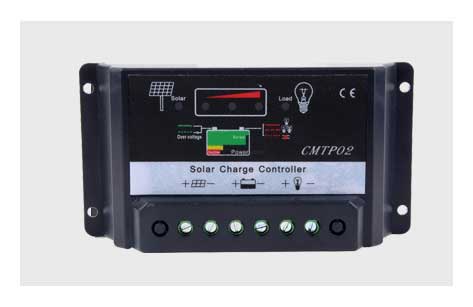

PWM Charge Controllers

PWM charge controllers have option of USB charging & dusk to dawn features with electronic & software controlled protections - Maintenance free - USB Mobile Charger Output option of SMF & Lead Acid Battery selection.
Range- 12 V- 6Amp, 12/24V- 10 Amp& 20 Amp.

Features
  • Automatic selection of 12 v/24v battery
  • Aesthetic & compact design
  • 98% efficiency
  • Fuse less electronic & software controlled protection
  • USB port
  • Option of SMF & Lead Acid Battery selection
  • Load controller with LVD & dusk to dawn features
Benefits
  • No Manual operation
  • 20% extra power handling capacity
  • Maximum utilisation of solar power
  • Maintenance free
  • USB Mobile charger O/P
  • Flexibility in choice of battery per usage
  • Saves battery from deep discharge which increases life

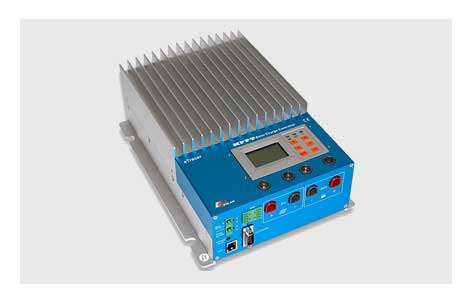

MPPT Charge Controllers

An MPPT (Maximum Power Point Tracking) is a technology in which there is Dc to Dc conversion that optimises the match between the solar array (PV Panels), and battery bank or utility grid. To put it simple, it converts a higher voltage DC output from panels down to the lower voltage need to charge batteries without loss of power.

Benefits
  • Increase in solar power extraction by up to 30%
  • Ability to have higher input voltage than battery bank
  • Safe charging to increase life of battery
  • No Manual operation
  • Great flexibility for system growth
Features
  • Smart tracking algorithm
  • Four stage battery charging - Bulk absorption - Float & Equalize
  • Automatic selection of battery voltage
  • Higher input voltages from PV module
  • Easy Upgradation
  • Range available- 20 Amp, 40 Amp & 60 Amp.

Street Lights

LED LANTERN

Solar Panels

Monocrystalline cell/Polycrystalline Cell IEC certified PV modules with performance warranty of up to 25 years.

Features
  • Best in class conversion efficiency
  • Antireflective coating and back surface field
  • Advance EVA encapsulation
  • Strong lightweight aluminium frame design
  • Compliance to IEC standards
  • MNRE Approved
Benefits
  • Higher cell efficiency for optimum output
  • More light absorption
  • Multilayer encapsulation providing better module protection
  • Offers high torsion resistance against wind & snow load
  • Safe, reliable and good quality

WATER HEATER

Water Heater
  • 100 LPD/150 LPD/200 LPD/250 LPD
  • Safe water for cooking
  • Evacuated tube with 3 layer
  • High thermal efficiency
  • Stainless steel inner & outer tank
  • Aluminium stand parts
  • Ideal for hard water (Ceramica Model)
  • MNRE Approved
  • 5 yrs Warranty
Annual saving on Electricity Bill
  • Electricity consumed for heating 100 ltrs of water in a 25 ltr electric water heater= 4.65 units/day
  • For 300 sunny days electricity consumed = 4.65x 300=1395 units
  • Electricity cost @ Rs.6.5/ unit= 1395x6.5= Rs- 9068. /-

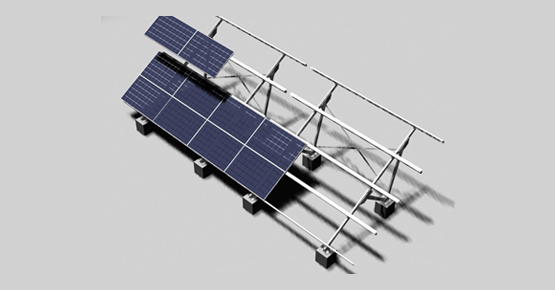

Aluminium Structure

Aluminium Structure

Made of good quality aluminium(Anodised A16005-T5) and stainless steel (SS 202) for roof top as well as ground mount systems. This is suitable for residential and commercial applications.

Easy installation- Saves cost
Flexible & Compatible- Usable for different types of roofs
Safety & Reliability- Corrosion free and load carrying capacity

Models Available

Triangle Bracket portrait/Landscape

Features

  • Ideal for flat roof top
  • Main material : Anodised Al 6005-T5
  • Fasten material SS202
  • Variable angle of inclination
  • Foundation options: Direct bolting/weight plate

Fixed and Adjustable Tilt mount

Features

  • Enables simple, fast and cost effective installation
  • AI6005-T5 High class anodised Aluminium
  • Water proof rubber integrated
  • Fasteners and rail nut: Completely configured to save extra parts purchasing

Roof hook mount

Features

  • Suitable for metal/polymer sheets
  • There is no need to pierce the sheet
  • Main Material : Anodised Aluminium
  • Fasten material: SS 202

Ground Mount

Features

  • Fast and easy installation
  • Long serviceability and high recyclable value

Battery


CIO rating deep cycle batteries specially designed for longer back up - Batteries of rating starting from 20 Ah to 200 Ah in 3 years & 5 years warranty - Can handle extreme weather conditions - Over charging sustainability and Ah efficiency 90% and wh efficiency of 80%.


Home Lamp 20Wp & 10wp


  • Three/Two light system with excellent battery back up
  • 5 step light intensity regulation
  • Handy model with a torch at the front
  • Mobile charging output with Multi Pin connector
  • Can run 12 V DC lamp, DC fan, Dc TV & other DC loads
  • Light weight and easy to carry
